Electric Bike Kit 36V 250W 350W 500W 48V 1000W 1500W EBike Kit Wheel Hub Motor Bicycle Conversion Kit for 20-29in 700C
Price range: $261.98 through $414.49 (-26%)
Description
if you need battery, please click Battery photo, and then buy it.
Packing List
Noted:Battery ,Tirenot included
1 * front or rear Motor wheel（20/24/26/27.5/28/29inch 700C）
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LED880 or LCD3 or LCD8 (Option)
1 set * Half Twist Throttle (default) or Thumb Throttle or Half Twist Throttle with electric lock or Twist Throttle (Option)
1 * 8 Magnet Pedal Assistant Sensor
1*7-speed thread-on freewheel
1 * 160mm disc brake

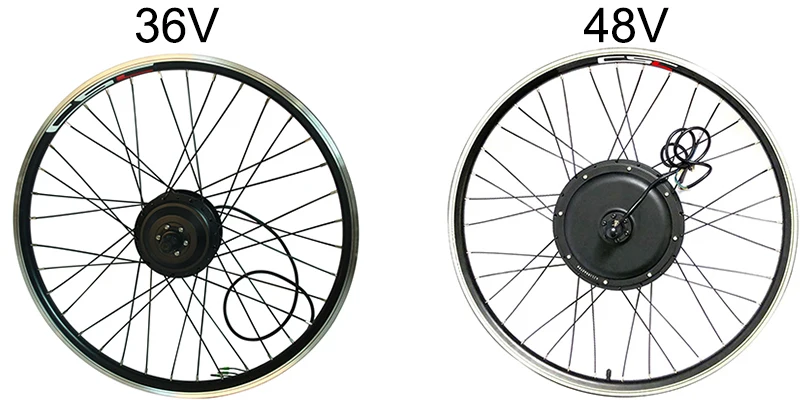

Motor Wheel
1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 500W about 40-50km/h,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Rear 135mm-142mm or Front 100mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
470 for 48V 500W 1000W
540 for 48V 1500W
Display
There are 3 options
If you select “No Display”, there is no display
LCD3 and LCD8 display which comes with Brake Regeneration Anti-Charge ,cruise Function
LCD8 display with USB function
Controller
36V 250W, 36V 350W ,36V 500W option with 6 Mosfet controller (①)
48V 500W 1000W option with 12 Mosfet controller (③)
48V 1500W option with 18 Mosfet controller (④)
PAS
KT BZ-4(8) Magnet
Throttle
Ship from Chinathere are 4 options
1.Half Twist Throttle (default)
2.Thumb Throttle
3.Half Twist Throttle with electric lock
4.Twist Throttle
Power cut-off brake leaver
Note: If you need a brake sensor instead of a brake lever, please contact us for an additional fee.
Tracking number is also available for Seller's shipping method.
1.）We ship by EMS ，Russian Post, hongkong post air parcel or China post air parcel. If you need it ship by DHL, FEDEX or UPS,please contact us to pay extra cost.
2. ) Import duties, taxes and charges are not included in the item price.These charges are the buyer’s responsibility. If you need DPD/ XDB shipping to European countries, please Buy the link below with Conversion Kit together. click >>>DPD/XDB<<<. If you have any questions about tax, please contact us.
please contact us to check whether you can use this service.
3. ) If you have any question after you receive the items, please contact us first. Your satisfaction is our top priority and we are confident that you will be pleased with our services.
Packaging
Our Factory and Warehouse
Certification and Patent
Specification
Additional information
| size | 24in,26in,27.5in,28in,29in,700C |
|---|---|
| Brake type | Disc brake |
| Brand Name | CSC |
| Certification | CE |
| Motor Type | Brushless Gear Hub Motor |
| Design | Brushless |
| Origin | CN(Origin) |
| Voltage | 48V |
| Wattage | > 400w |
